Wire For Stitching Applications In Corrugated Cardboard, Wood, Plastic And Other Materials
These wires are used in the corrugated carton box industry, for closing the side of boxes. Suiting every need, the wire coils may be prepared in spools of 4.50 kg and 10.0 kg. These wires are packed in cardboard boxes, for easy handling and storage.
The ideal gauge depends on its utilization. For example, work with thicker cardboard box would be more appropriate to work with a greater thickness, ensuring the correct wire penetration in corrugated carton. There are some types of wire that are most common for this application. Even though, our sales department will be happy to supply something different if needed.
The finishing of this wire can be either copper coated or galvanized, ensuring greater protection against the weather.
To increase service life, keep the wire spools inside the original corrugated box, safe from moisture, until they are used. For more tips, ask our salespeople for Miruna Manuals.

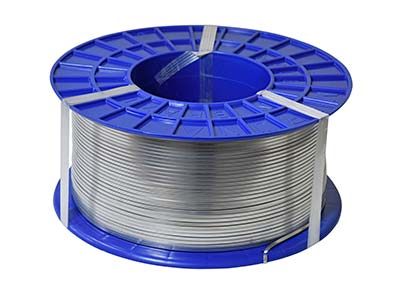

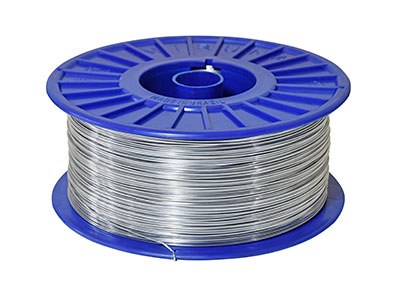

Galvanized wires:
|
Arame |
Diâmetro Diameter |
Espessura Máx de Grampeação Max. Stitching Thickness |
Comprimento Lenght |
Máquina Miruna Miruna´s Stitching Machine |
|
II 24 |
0,75 x 0,45 0.030 x 0.018 |
8 mm |
377 ; 548 |
Modelo 3 D2 Modelo 7 |
|
III 23 |
0,75 x 0,55 0.030 x 0.022 |
8 mm |
308 ; 452 |
Modelo 3 D2 Modelo 7 |

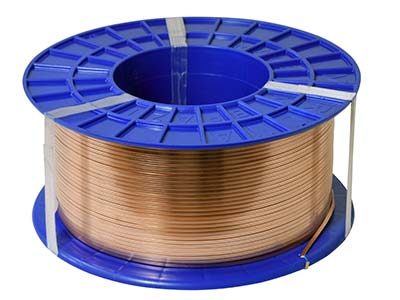

Galvanized and copper wires:
|
Medidas do Arame Wire Measurements |
Polegadas Inches |
Espessura Máx de Grampeação Max. Stitching Thickness |
Comprimento Lenght |
Máquina Miruna Miruna´s Stitching Machine |
|
2,5 x 0,50 |
0.099 x 0.0197 |
12 mm |
97 ; 151 |
Modelo 2 Modelo G 800 |
|
2,5 x 0,60 |
0.099 x 0.024 |
15 mm |
86 ; 148 |
Modelo 2 Modelo G 800 |
|
2,5 x 0,70 |
0.099 x 0.028 |
16 mm |
76 ; 124 |
Modelo 2 Modelo G 800 |

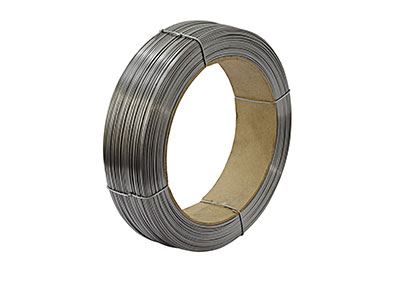

Polished wires:
|
Arame Wire |
Diâmetro Diameter |
Espessura Máx de Grampeação Max. Stitching Thickness |
Comprimento Lenght |
|
18 |
1,20 ; 0.047 |
25 mm |
112 ; 166.2 |
|
16 |
1,50 ; 0.059 |
25 mm |
72 ; - |
-
- Best-selling sizes. Consult our salespeople for other options.
The expressed measures were established by approximation. Technical specifications may change at any time, at the sole discretion of the manufacturer.
