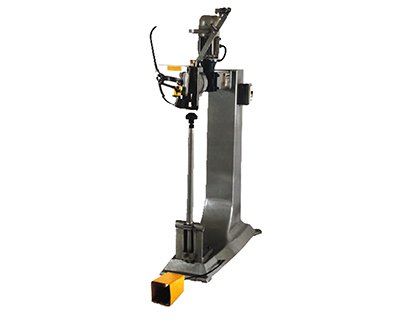

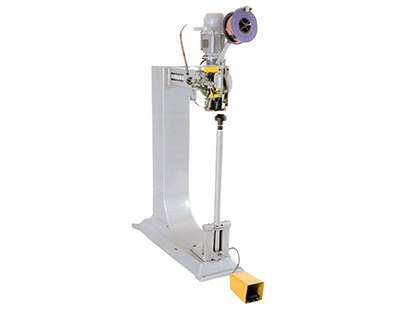

Model 6/14 staples
DescriptionTechnical SpecificationDownloads (pdf)
The model 6/14 staples the bottom of the corrugated boxes transferring resistance to the packaging, working with an application speed of up to 200 staples per minute. This machine uses wire spools as input, and for its best functioning and quality in stapling, it is indicated.
| Stitching thickness | up to 16 mm / 0,63" |
| Staple´s width | 9/16" |
| Production´s Speed | Up to 200 staples per minute |
| Stitching Wire | 0.099 x 0.0197" and 0.099 x 0. 24" |
| Arm´s lenght (free space) | 31,49" |
| Electric motor | 0,75 HP three-phase - 1700 RPM - 50/60 Hz - 220/380 volts. |
| Total weight | 410 lb |
| Area | H 1760 mm x W 540 mm x L 1200 mm. |
*The above specifications may change at any time at the sole discretion of the manufacturer
