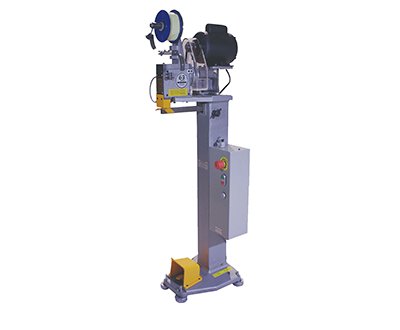

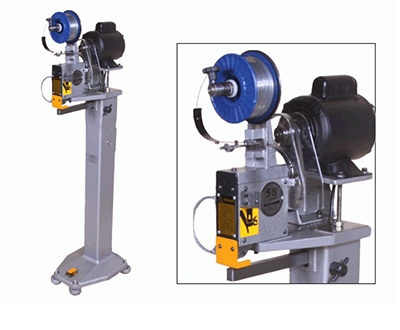

Model 7
DescriptionTechnical SpecificationDownloads (pdf)

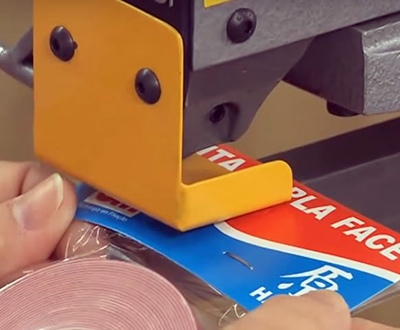

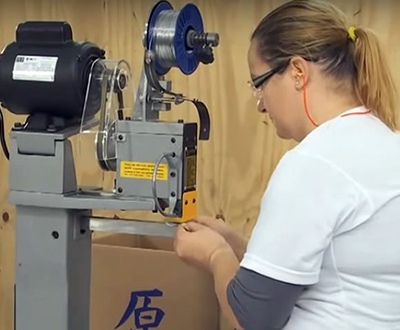

Pedal-powered electric stapling machine, ideal for closing packages in the industry in general, stapling cardboard paper packages in plastic bags. Small, but with high stapling power, it is also versatile for other applications with speed and up to 4 mm thick.
| Stapling thickness | Up to 4 mm |
| Staple width | 10 mm |
| Staples per minute | 200 |
| Length of arm | 200 mm |
| Total weight | 53 Kg |
| Motor | Single / triple phased - 1/8 HP - 50/60HZ - 1700 RPM |
| Wire types | 0,75 x 0,45 mm (II-24) and 0,75 x 0,55 mm (III-23) – 2 kg spool |
*The above specifications may change at any time at the sole discretion of the manufacturer.
